Thermally insulating panel Glastherm

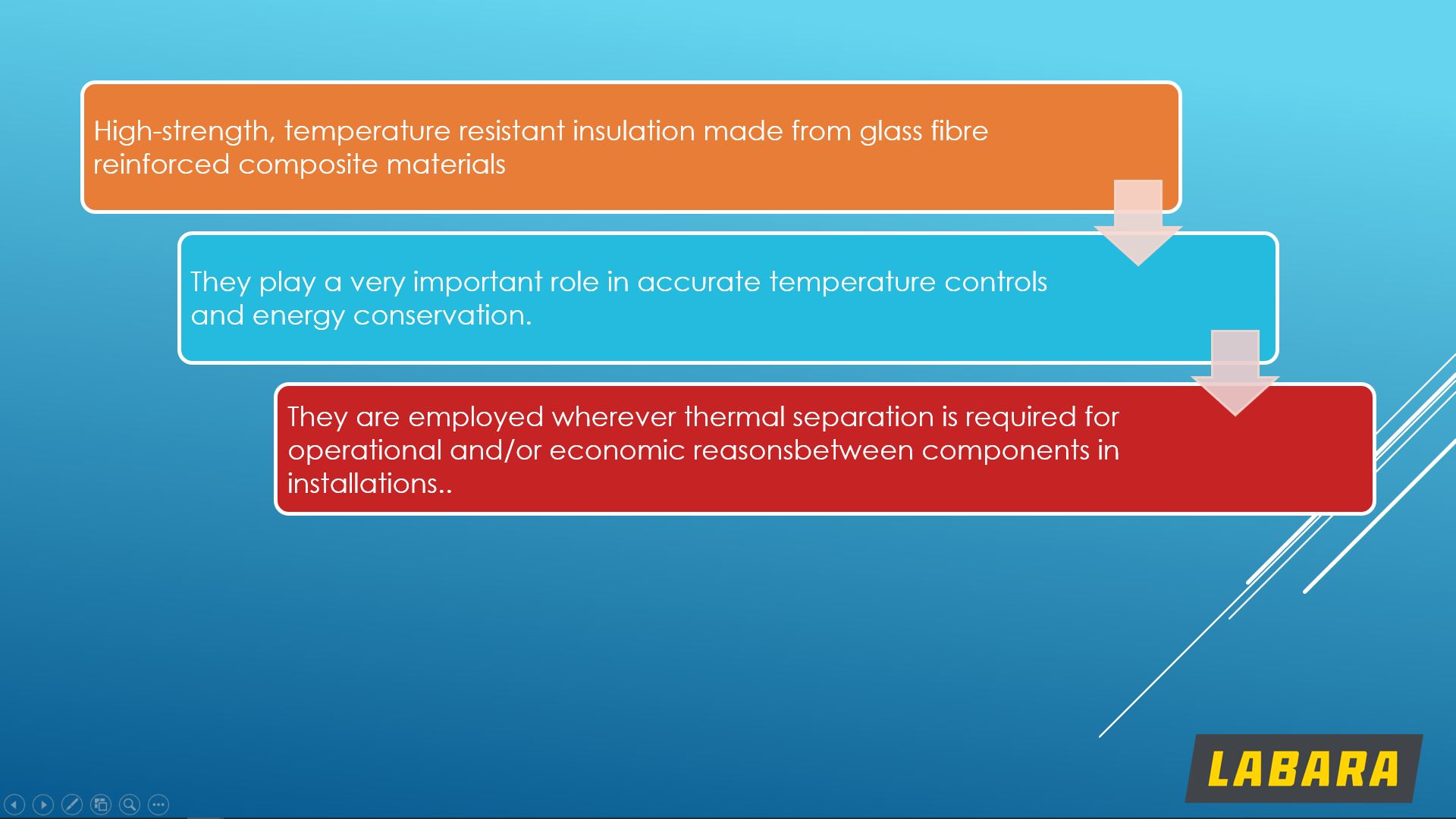

High-strength, temperature resistant insulation made from glass fibre reinforced composite materials play a very important role in accurate temperature controls and energy conservation. They are employed wherever thermal separation is required for operational and/or economic reasonsbetween components in installations.

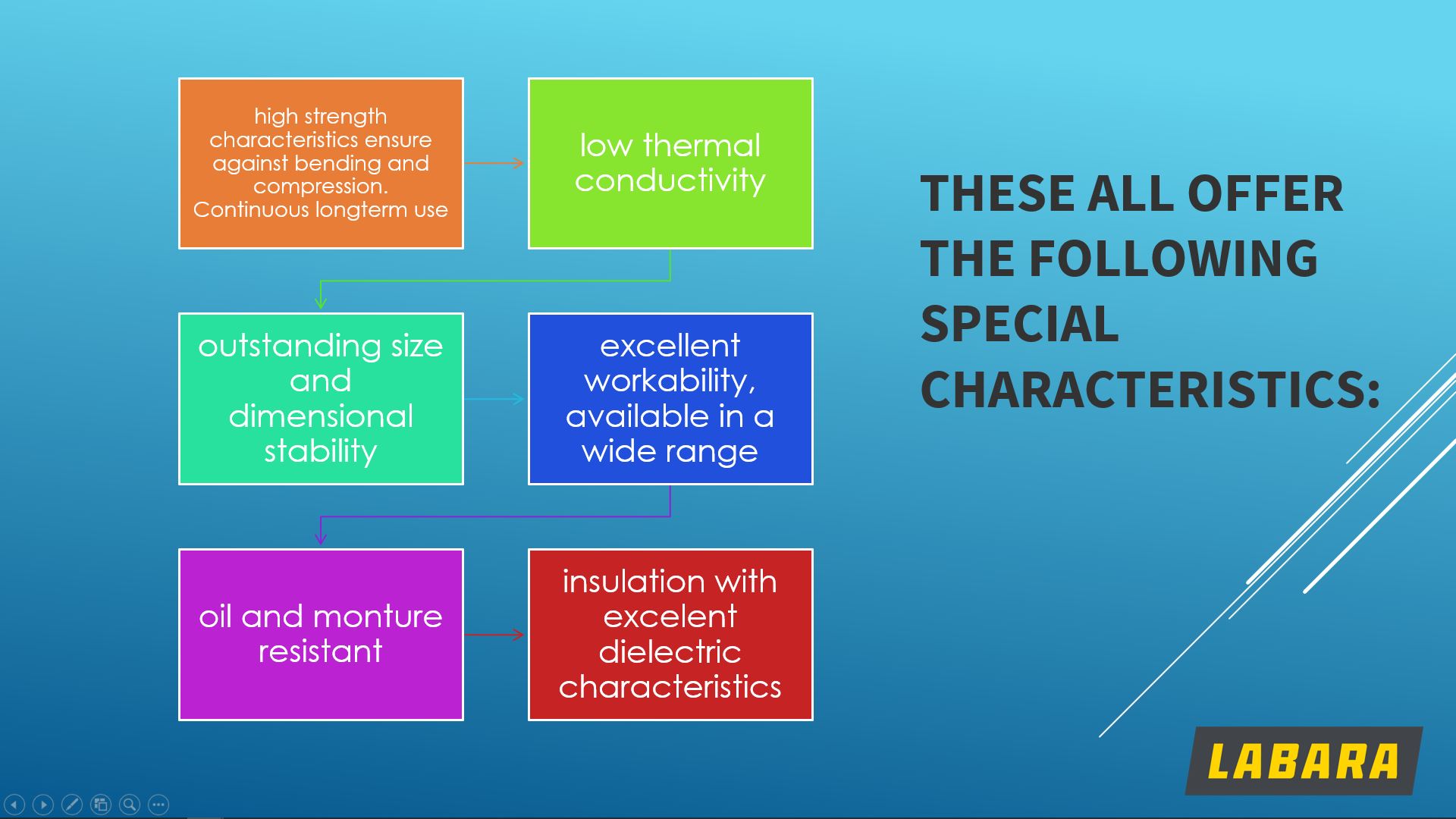

  • high strength characteristics ensure against bending and compression. Continuous longterm use
  • low thermal conductivity
  • outstanding size and dimensional stability
  • excellent workability, available in a wide range
  • oil and monture resistant
  • insulation with excelent dielectric characteristics

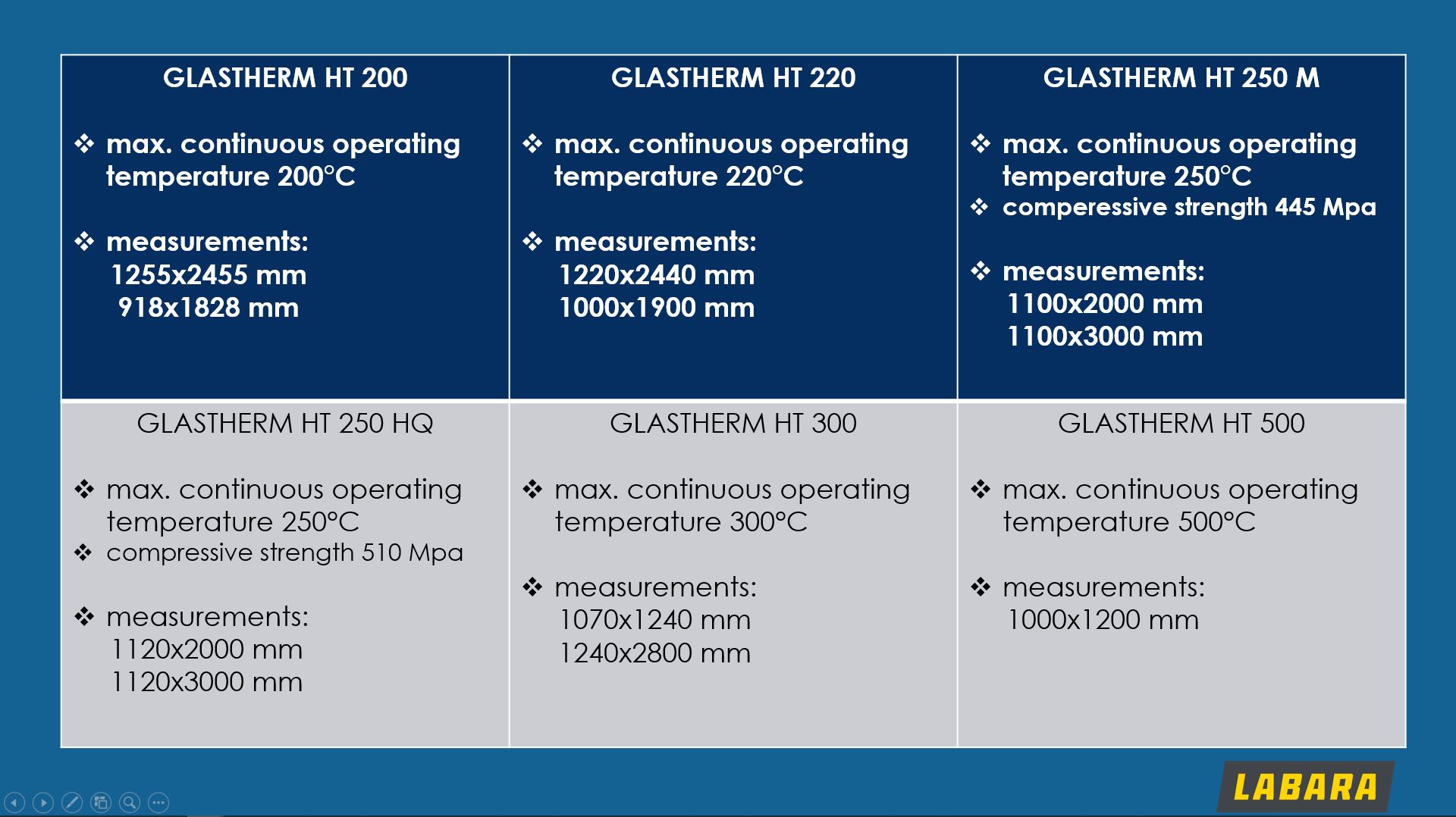

  • we have on stock GLASTHERM HT200 – which is most often used in thicknesses 5, 6, 8, 10, 12, 15, 20, 25 mm, sheet size 1220x2440 mm
  • GLASTHERM HT220 - thicknesses 6, 8, 10, 15, 20, 25 mm, sheet size 1220x2440 mm
  • GLASTHERM HT250 - thicknesses 6, 8, 10, 12, 15, 20 mm, sheet size 1040x2000 mm
  • GLASTHERM THERMALITE 500, is produced in thicknesses 4 – 50 mm, sheet size 1000x1200 mm
  • Different sizes, types and material delivery dates are specified after consultation with manufacturer
  • We mainly supply precision-machined parts and cutoff s according to drawings
  • Our company has technological device to which we are able to work with maximum format 1220 x 2440 mm

We will prepare price offer base on customer specific requirements

Material application:

  • Injection forms insulation sheets, presses, and machine equipment insulation


  • The materials are parts subject to wear. The lifetime depends on the height and stability of the temperature, mechanical stress, and the type of disconnection that is being used
  • Other thicknesses on request
